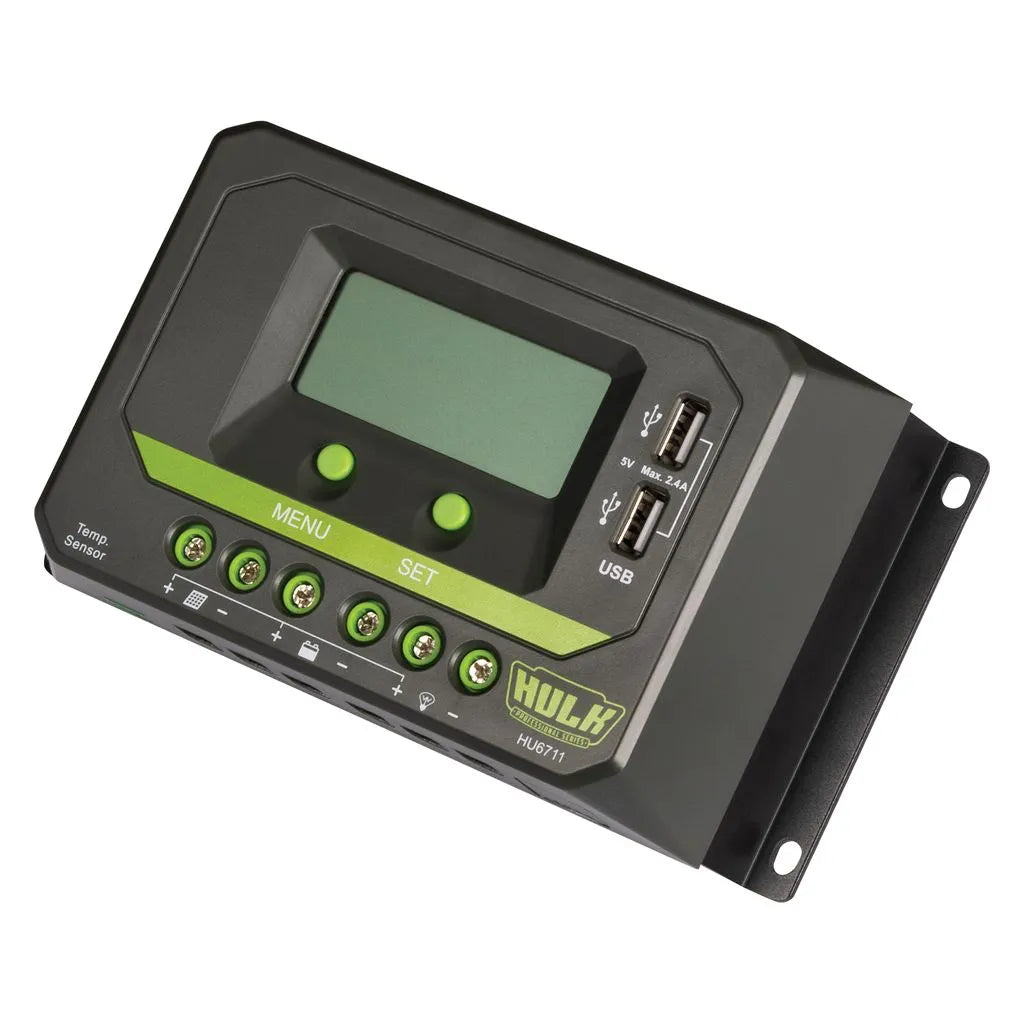

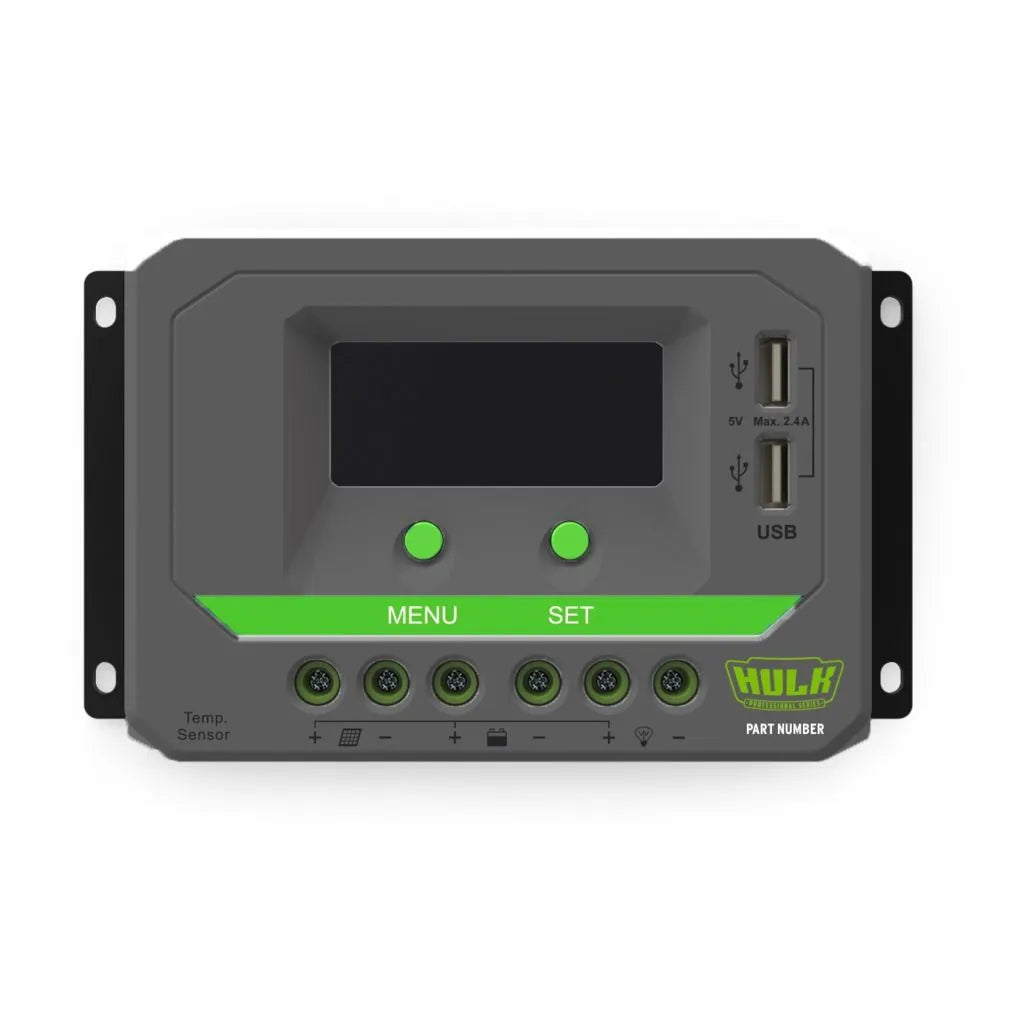

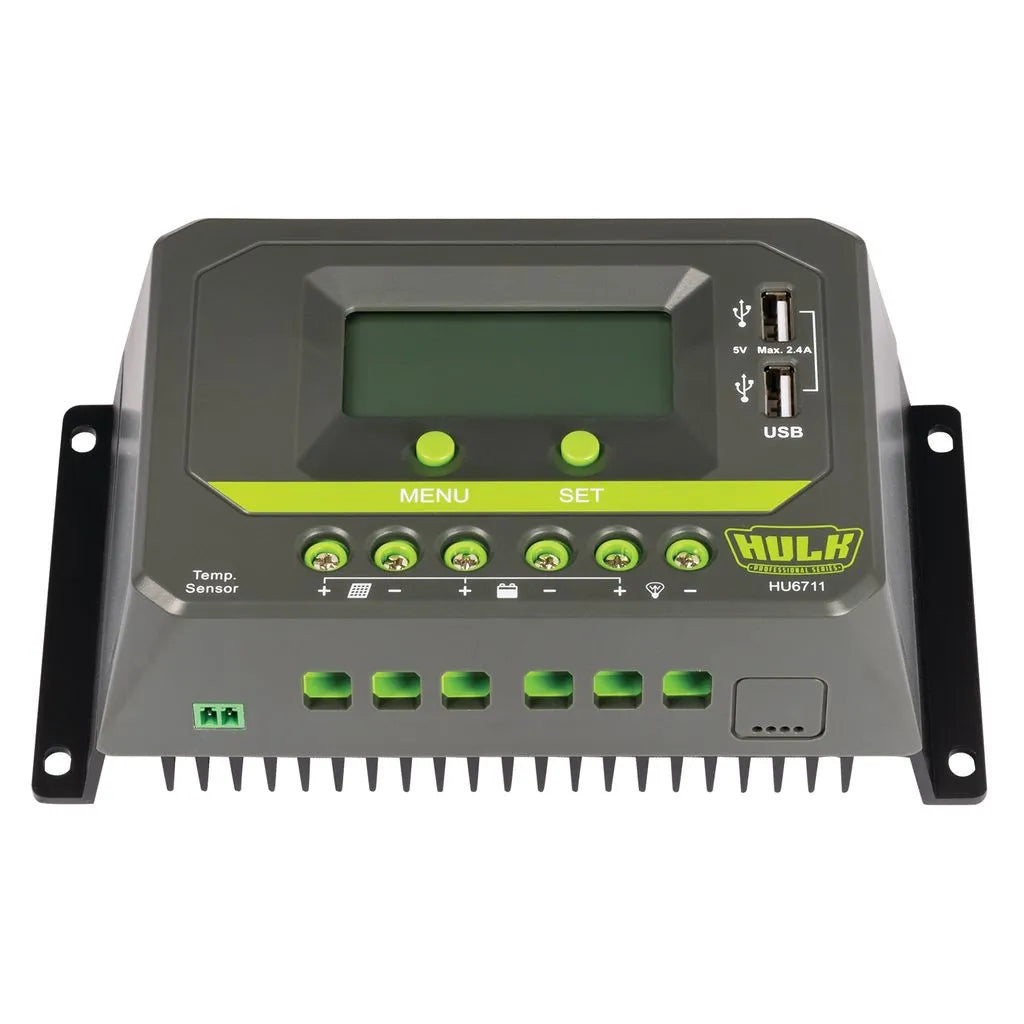

HULK 4X4 30A PWM Solar Charge Controller

$180.00
$180.00
Tax included. Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day dispatch? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

PWM Solar Charge Controller

Overview

The HULK Professional Series PWM (Pulse Width Modulation) Solar Charge Controller, is available in 30 Amp and 60 Amp configurations.

Features

  • Utilises high-quality components from ST, IR, and Infineon for extended product lifespan
  • UL and VDE certified terminals ensure safety and reliability
  • Can operate continuously at full load within a temperature range of -25 to 55°C
  • 3-Stage intelligent PWM charging mechanism for efficient charging
  • Supports 3 charging options: Sealed, Gel, and Flooded batteries
  • Provides extensive electronic protection for enhanced safety
  • Backlit LCD display shows operating data and working conditions in real time
  • Dual USB ports with 2.4A output for charging electronic devices
  • Multiple load control modes for versatility
  • Energy statistics function for monitoring power usage
  • Battery temperature compensation for improved performance



PWM Solar Charge Controllers

Additional features include selectable battery type, and compatibility with 12V, 24V, 36V, and 48V systems. The controller also offers electronic protections against various faults, including reverse polarity, overvoltage, over discharge, short circuit, overload, and overheating.

Technical Specifications

  HU6711 HU6712
Rated Charge/Discharge Current 30A @ 55°C 60A @ 55°C
Nominal System Voltage 12/24/36/48VDC Auto
Battery Input Voltage Range 9V-64V
Max. PV Open Circuit Voltage 96V
Battery Type Sealed (Default) / Gel / Flooded
Equalise Charging Voltage* Sealed: 14.6V / Gel: No / Flooded: 14.8V
Boost Charging Voltage* Sealed: 14.4V / Gel: 14.2V / Flooded: 14.6V
Float Charging Voltage* Sealed / Gel / Flooded: 13.8V
Low Voltage Reconnect Voltage* Sealed / Gel / Flooded: 12.6V
Low Voltage Disconnect Voltage* Sealed / Gel / Flooded: 11.1V
Self-Consumption ≤9.2mA/12V
≤11.7mA/24V
≤14.5mA/36V
≤17mA/48V
Charge Circuit Voltage Drop ≤0.29V
Discharge Circuit Voltage Drop ≤0.16V
LCD Temperature Range -20°C to 70°C
Relative Humidity ≤95%, N.C.
Enclosure IP30
Grounding Common Positive
USB Output 5VDC / 2.4A (Total)
Temperature Compensation Coefficient -3mV / °C / 2V (25°C)
Working Environment Temperature -25°C to 55°C (product can work continuously at full load)
Dimensions 181mm x 100.9mm x 59.8mm 214mm x 128.7mm x 72.2mm
Mounting & Hole Size 172mm x 80mm & Φ5 205mm x 100mm & Φ5
Terminals 16mm2 / 6AWG 25mm2 / 4AWG
Net Weight 0.58kg 1.04kg

* The above parameters are in the 12V system at 25°C, twice in the 24V system, triple in the 36V system and quadruple in the 48V in system.
